1. ESC Setting:

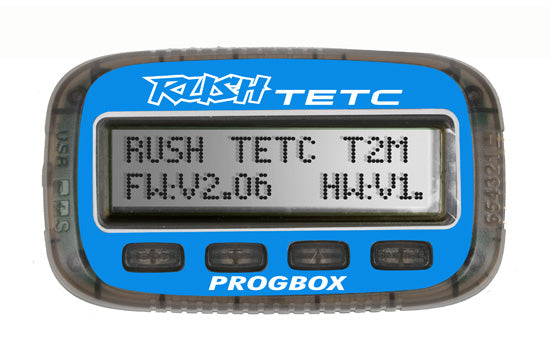

Easy and quick to use, allowing you to modify the parameters displayed on the LCD screen.
2. Li-Po Battery Tester:
Displays the number of Li-Po cells (up to 6S), the voltage of each cell, the highest and lowest cell voltage, as well as the voltage difference between the strongest and weakest cells.
3. PPM Input:
Allows you to measure the receiver output voltage, the PPM signal width, and the servo operating frequency.
4. Servo Tester:
Measures the servo’s supply voltage, travel range, and peak current consumption.
5. KV and RPM Tester:
Measures the input voltage, the KV value, and the rotational speed in revolutions per minute (RPM).
6. PC Configuration via RUSH LINK Interface (USB cable not included)
Configuration Utility:
You can modify your ESC’s configuration using the USBLink software.
• Download the ZIP file from the link below.
Download the USBLink utility
• Unzip the executable file usblinkSetup.exe, then double-click on usblinkSetup.exe.

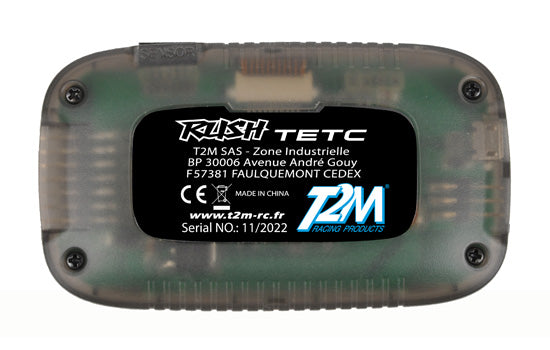

• Connect the programming box (Progbox) to the computer using a USB cable (not included).
• Connect the ESC to the Progbox via the servo lead (make sure to respect the correct polarity).
The ESC must be switched off and not connected to a battery.
• The ESC should then be detected automatically.
⚠️ Warning:
The USB cable must have a micro-B connector on the Progbox side and must be a data transfer cable (not just a charging cable).
