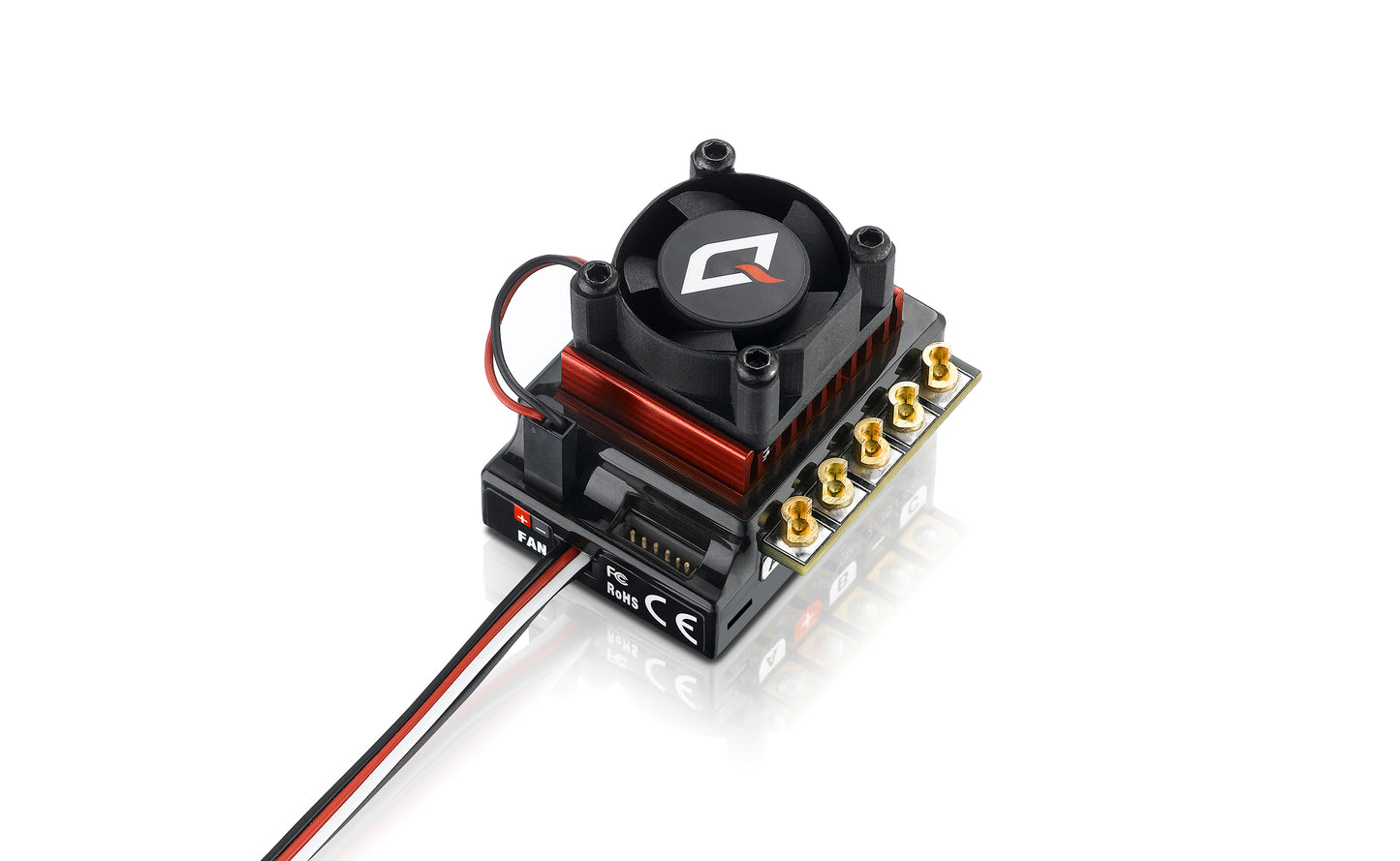

Hobbywing Quicrun 10BL120 G2 Sensored Brushless ESC

Hobbywing Quicrun 10BL120 G2 Sensored Brushless ESC

Regular price €59,00 EUR
Regular price Sale price €59,00 EUR
Sale Sold out
Tax included.

3 in stock

The QuicRun WP 10BL120 G2 is an impressive brushless electronic speed controller for RC cars. Thanks to the intelligent freewheel technology, it achieves improved performance and greater driving efficiency while remaining cooler than its predecessor. With the powerful integrated BEC, switchable output voltages and efficient cooling system, it is ideal for demanding RC models.

This controller is also equipped with thermal protection for its capacitors, which prevents damage from overloading. The built-in super-large capacitor offers an impressive 1640µF of capacitance and eliminates the need for external capacitors otherwise found on 1/10 scale models. The QuicRun WP 10BL120 G2 is suitable for use in all weather conditions and offers excellent waterproof and dustproof properties. Whether it's on mud, sand, ice, snow or water, this ESC ensures reliable and powerful performance without damaging the power supply. The QuicRun WP 10BL120 G2 is the ideal choice for RC enthusiasts who are looking for a powerful and reliable controller that knows how to impress in all situations.

Features

  • Now with even more performance than its predecessor
  • Water-proof and dust-proof for all-weather races. (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
  • The intelligent freewheel technology ensures that the ESC has a higher drive efficiency with a lower operating temperature at the same time.
  • Built-in powerful switch mode BEC, ideal for various powerful and high voltage steering servo.
  • Multiple protections: battery undervoltage protection, regulator overheat protection, throttle signal loss protection, current protection, capacitor overheat protection.
  • Finally also programmable with the LCD programming box and the OTA programming module with a smartphone.
  • 10 programmable parameters



Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output
Wires & Connectors Input Wires

Output Connectors

Input Connectors

Output Connecotors
ESC Programing via SET Button on ESC

LED Program Box

LCD Pro Program Box

OTA Programmer

Program Port
Fan Size

Output Wires

Input Connectors
Firmware Firmware Upgrade
Size & Weight Size

Weight
Applications Motors

Vehicles

KV Rating/T Count
Product Name QUICRUN WP 10BL120 G2
Product Number 30125002
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof
1/10th

BL

SD

No
Specifications Cont./Peak Current

Input Voltage

BEC Output
120A/760A

2-3S Lipo

Switch Mode 6V/7.4V @4A
Wires & Connectors Input Wires

Output Connectors

Input Connectors

Output Connectors
Black-12AWG-200MMmm*1 / Red--12AWG-200MMmm*1

Blue-12AWG-200mm*1 Yellow-12AWG-200mm*1 Orange-12AWG-200mm*1

No

No
ESC Programing via SET Button on ESC

LED Program Box

LCD Pro Program Box

OTA Programmer

Program Port
Supported

Supported

Supported

Not Supported

Separate Program Port
Fan Size

Output Wires

Input Connectors
25x25x10mm

5-8.4V

Powered by BEC
Firmware Firmware Upgrade Not Supported
Size & Weight Size

Weight
43*36.8*32.3mm

101.5g (Included wires&connectors)
Applications Motors

Vehicles

KV Rating/T Count
Sensorless / Sensored Brushless Motor

1/10th Touring Cars/Buggies/Drift Cars

2SLipo≥4.5T 3SLipo≥10.5T 3650 Size Motor
